AJP has supported Michigan State University’s Breslin Student Events Center through multiple technology upgrades, including the design of a custom center-hung videoboard and ribbon displays, a distributed audio system, and a centralized broadcast production facility.
AJP also conducted a technology feasibility review and capital expenditure plan to help MSU establish priorities for the arena’s future.
LED DISPLAY SYSTEMS
AJP designed a custom center-hung videoboard and more than 725 linear feet of ribbon displays for the Breslin Center, home of the Spartans’ men’s and women’s basketball and volleyball programs. The center-hung features four slightly curved 4mm LED screens joined with tight seams to create a continuous digital canvas for 360-degree viewing. The display contains more than 8.5 million pixels, while a ribbon board approximately 4 feet tall wraps around the arena bowl.
DISTRIBUTED LINE ARRAY AUDIO SYSTEM
In 2024, AJP designed and supported the implementation of a Fulcrum Acoustic FL Series Cardioid Distributed Line Array System at the Breslin Center, improving sound clarity and coverage throughout the arena. Working with Michigan State University, AJP selected C.V. Lloyd Audiovisual to install the new system, which includes:
- Eight array systems with 12 Fulcrum FL283T dual 8-inch subcardioid arrays
- One subwoofer cluster with 12 Fulcrum US221 subwoofers
- Four Fulcrum FH1565 15-inch full-range court-fill loudspeakers
- 16 Fulcrum CX1226 12-inch coaxial delay loudspeakers
- Three Lab Gruppen D200:4L four-channel Dante amplifiers
BROADCAST PRODUCTION FACILITY
AJP worked with Perkins Eastman and Michigan State stakeholders to develop and implement a centralized broadcast production facility supporting videoboard shows, Big Ten Plus streaming and linear Big Ten Network productions across multiple venues.
The installation of Breslin’s full-HD center-hung videoboard in 2023 was a major driver of the project. The previous control infrastructure was limited to 1080i; the new facility enables full 1080p delivery to Breslin Center, Spartan Stadium and Munn Ice Arena, improving video quality and production flexibility across the venues.
To meet an accelerated schedule, the project was delivered in two phases. Phase I included the buildout of two mobile production units: one equipped with new gear intended for the permanent facility, and another integrated with equipment provided by Big Ten Network. AJP also oversaw broadcast cable infrastructure upgrades at four athletic venues, each equipped with TVRP panels to connect mobile units and outside broadcast trucks.
Phase II completed the permanent production facility inside the Breslin Center. The facility and supporting infrastructure include:
- Three control rooms: one for videoboard productions, one full linear facility meeting Big Ten Network standards, and one for streaming and additional videoboard content.
- A Technology Operations Center (TOC) with direct connections to Spartan Stadium and Munn Ice Arena.
- Twelve hard cameras, including six new and six existing Hitachi units.
- A campus-wide fiber backbone, providing each venue with 48 strands of single-mode fiber for signal distribution.
The equipment package aligns with Big Ten Network recommendations and includes Ross Carbonite switchers, XPression CG, Evertz Dreamcatcher replay and Ross Ultrix routing systems.
OTHER AJP PROJECTS AT MSU:
Spartan Stadium (2025/ 2012): LED Display Systems, Scoring, Integrated Digital and Static Signage, Audio System.

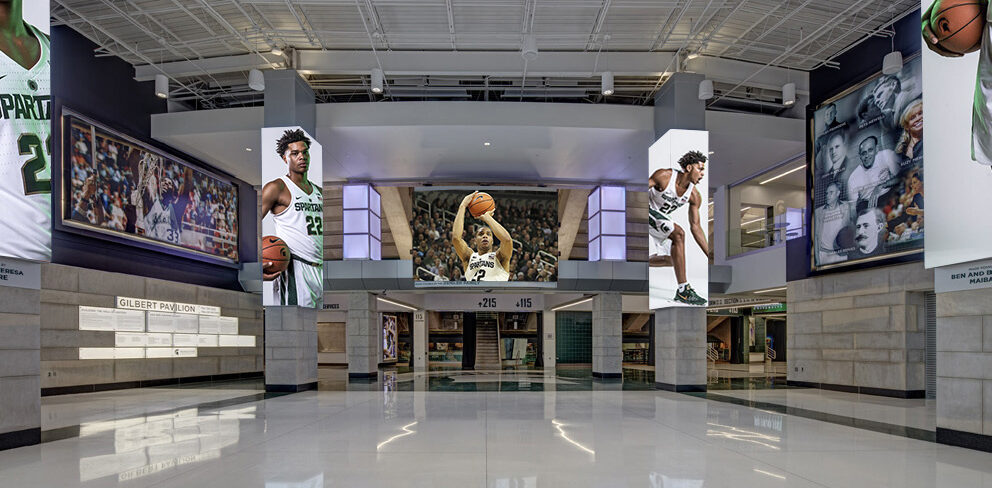

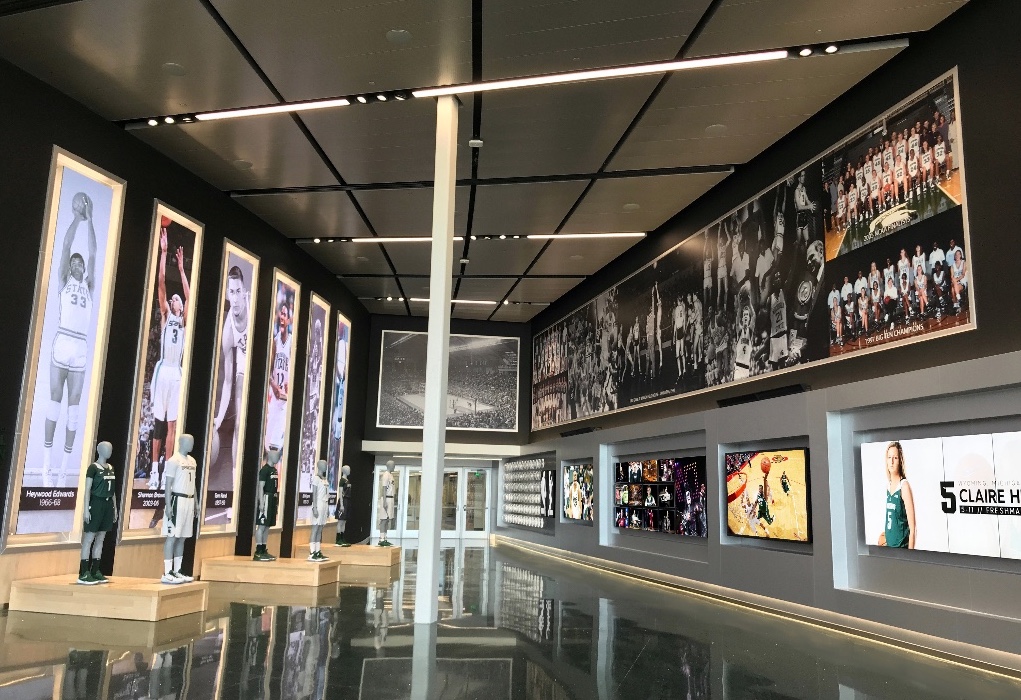

Tom Izzo Basketball Hall of History: Experiential Concept Design, LED Display Systems, Integrated Digital and Static Signage, Audio System.
Broadcast Production Facility (2025): 3x Control Rooms, Technical Operations Center, Camera and Control System, Shading Stations (x2), Interface to Connect Athletic Facilities.
Munn Ice Arena: LED Display Systems, Scoring, Integrated Digital and Static Signage, Audio System.
Skandalaris Football Center: LED Display Systems, Scoring, Integrated Digital and Static Signage.
Football Gateway Hall of Champions: LED Display Systems, AV System Design and Engineering, Audio System.
